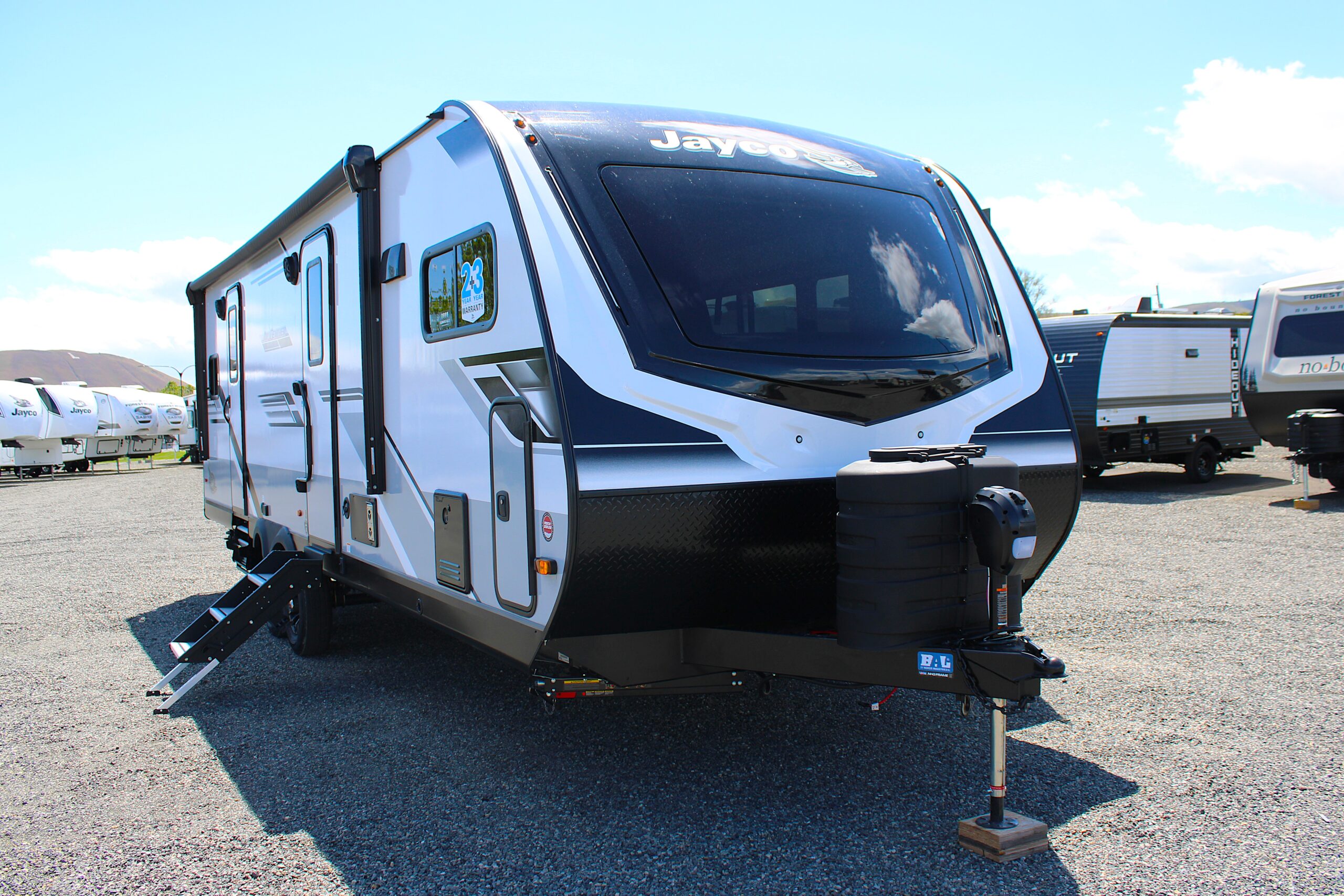

2025 JAYCO Eagle 230Mlcs Ht
3D VIEW
The most well-equipped and appointed travel trailer in our lineup, the Jayco Eagle HT Travel Trailer, has all the bells and whistles of a fifth wheel in a travel trailer package. To help ease the towing process even further, the Eagle HT Travel Trailer is designed for travel with magnetic drawers/doors, pantry ledges and heavier shelves, so there’s less shifting during transit and sturdier support. The “click-it” confirmation will let you focus on the road and not worry about your items shifting around.
Equipped with Climate Shield™, the Eagle HT Travel Trailer withstands the cold and hot temperatures and with an A/C heat pump prep, you’re set up to have more efficient heat and no debris in the ducting. Wondering how this is possible? Part of the ability to withstand inclement climates is due to the construction, including Alpha Systems roofing, which is 40-80% thicker than all other roof membranes, uses 100% solid sealant (no solvents), has a five times higher peel adhesion results and comes with a lifetime warranty. The Eagle HT Travel Trailer is warrantied for full-time RV use and has our 2+3 warranty.
When it comes to the least favorite part of camping, dumping the black tank, the Eagle HT Travel Trailer has made this chore easier with a night light added to all dump areas and a visual so there are no surprises when removing the cap.

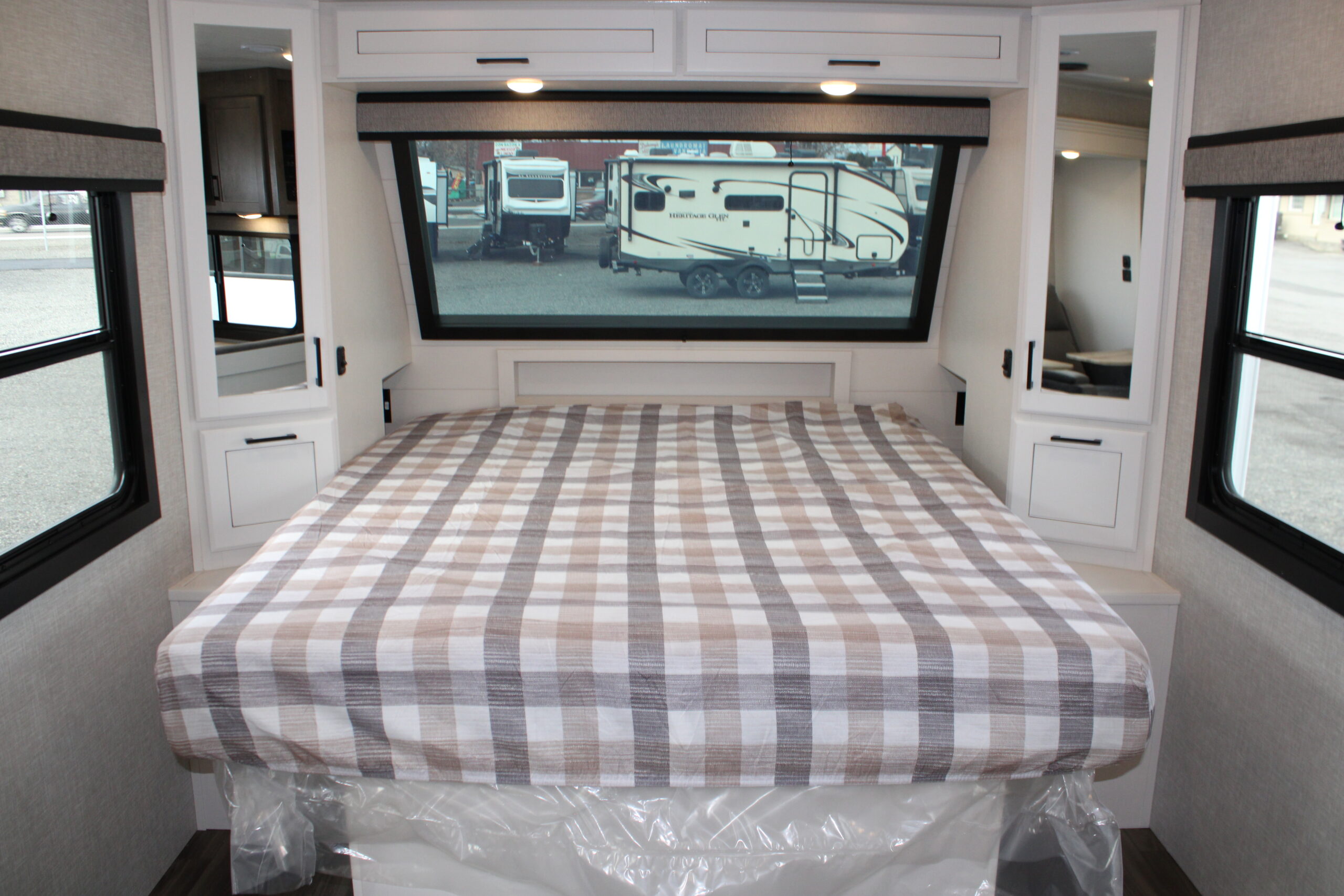

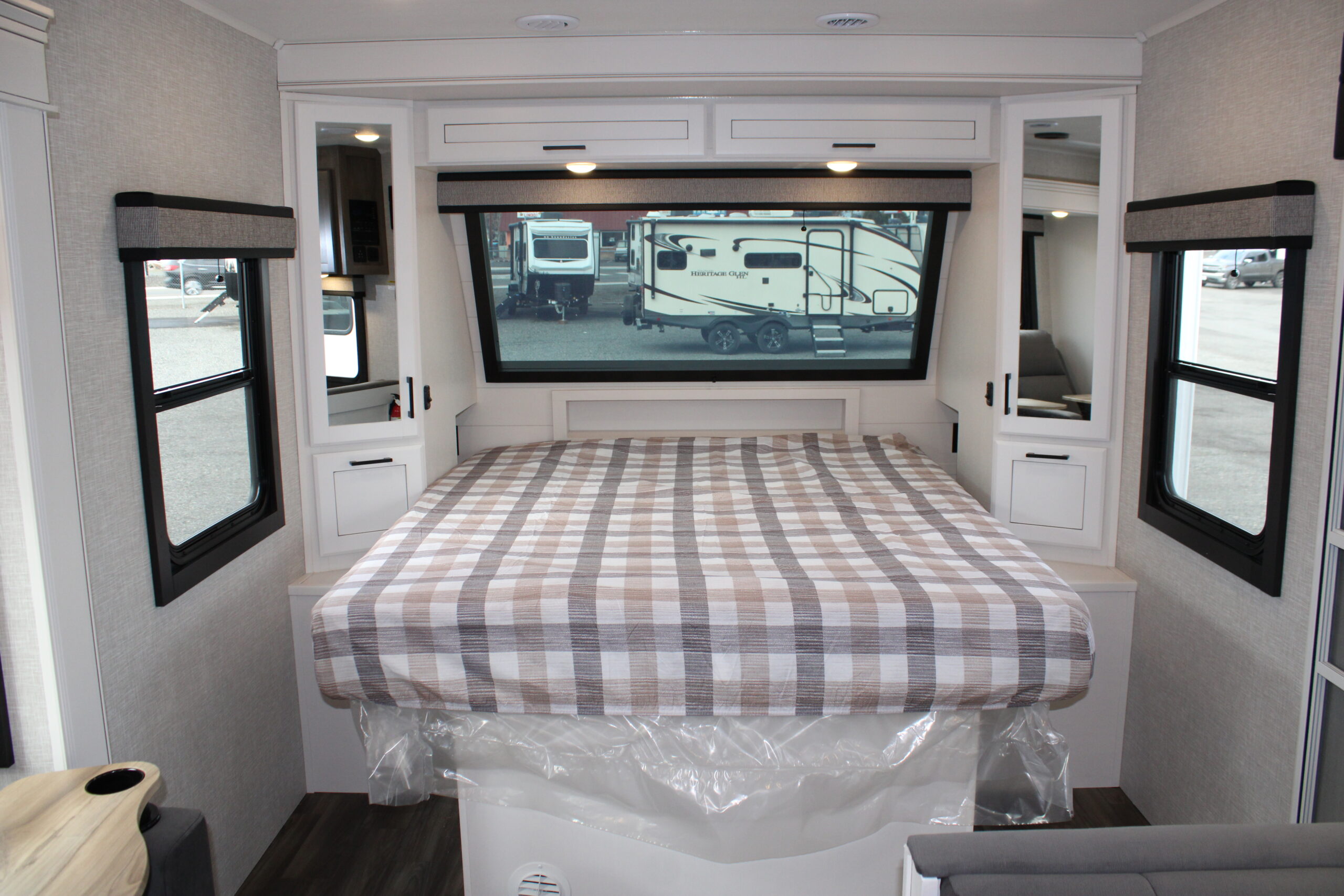

Inside, you’ll appreciate the extra mile Jayco touches. The Olympic beds are 6” wider and 8” thicker than others, featuring Cooling Tech that allows for a more comfortable and cooler sleep on a larger sleep surface. When its time for bed, the front windshield has a reflective black-out shade and fits the Olympic bed model. During the day, the large windshield opens up the bedroom views when you’re in there, and blocks out heat when you’re not.
The “Blue Sync” interior speaker system provides easy pairing, quality speaker sound, and simple operation, for a more enjoyable time inside. The multi-purpose living and kitchen space has a dinette area with foldable chairs for added storage and an ottoman that can be moved and used as a footrest. When it comes to packing and storing food for your trip, the GE 10 cu. ft. refrigerator offers a quicker cooling time of 20 min. versus 24 hours, is 10-13% more efficient on battery and has a 5-degree colder freezer than the competition. For added convenience, the optional Smart RV system allows you to control your coach easily, at the touch of your fingertips.
Experience comfort and convenience like never before with the Eagle HT Travel Trailer.
Interior Design
Classic Farmhouse
Standard Features and Options
Standard Exterior Equipment
- 5 in. fresh water drain valve
- 5 in. Magnum Truss™ with plywood roof decking
- 50-amp detachable power cord
- Additional dump valve at termination
- Alpha Ply TPO roof membrane (thickest roof membrane with limited lifetime warranty)
- Auto-grade vinyl graphics
- Automotive style front cap with max turn radius
- Backup camera prep
- Black tank flush
- Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
- Dual 30 lb. LP bottles

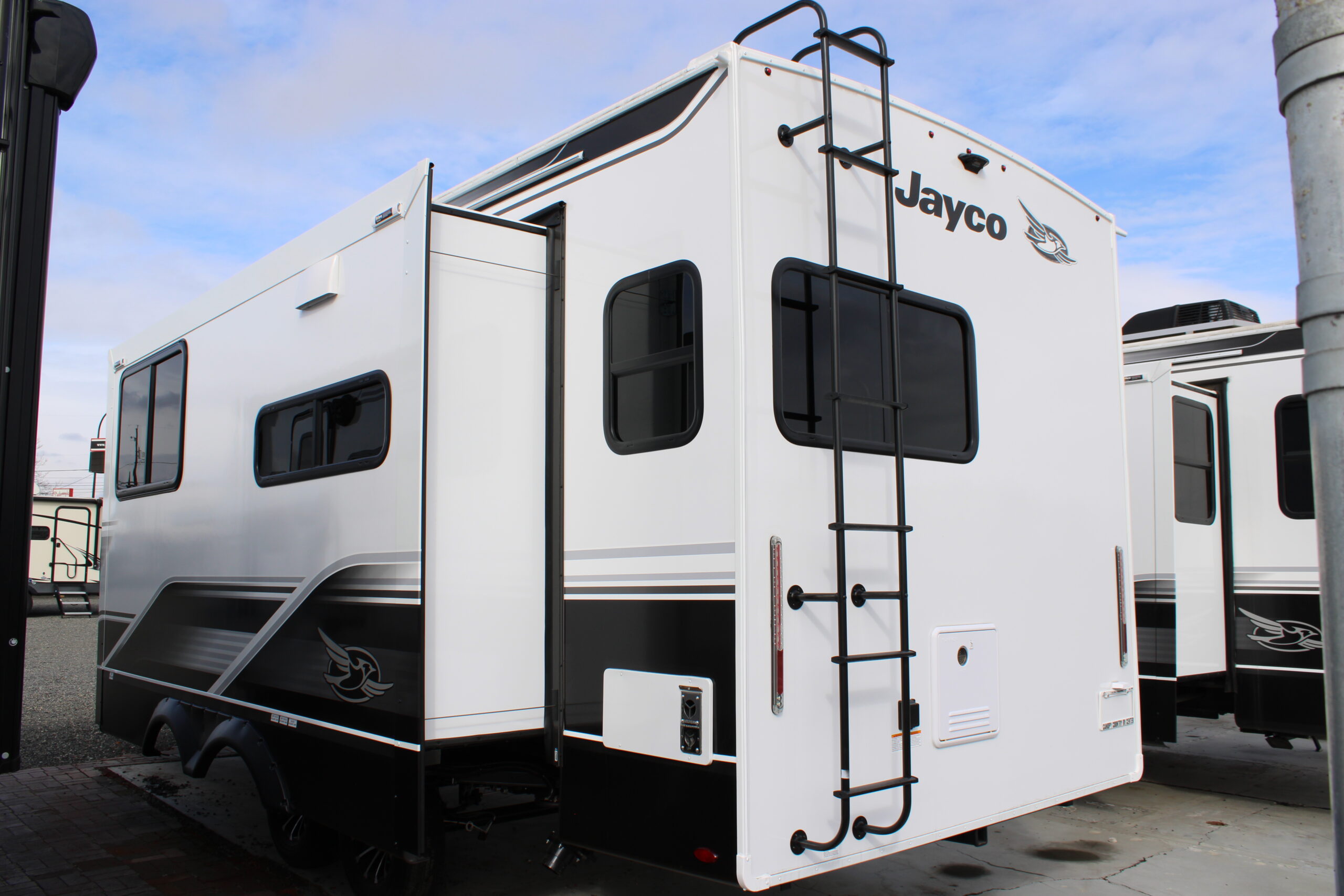

- Factory installed roof ladder
- Galvanield steel coated outside kitchens
- HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
- Independent satellite and cable hookups (outside kitchens and/or pass through storage areas)
- LED exterior lighting package
- LED light and switch at termination

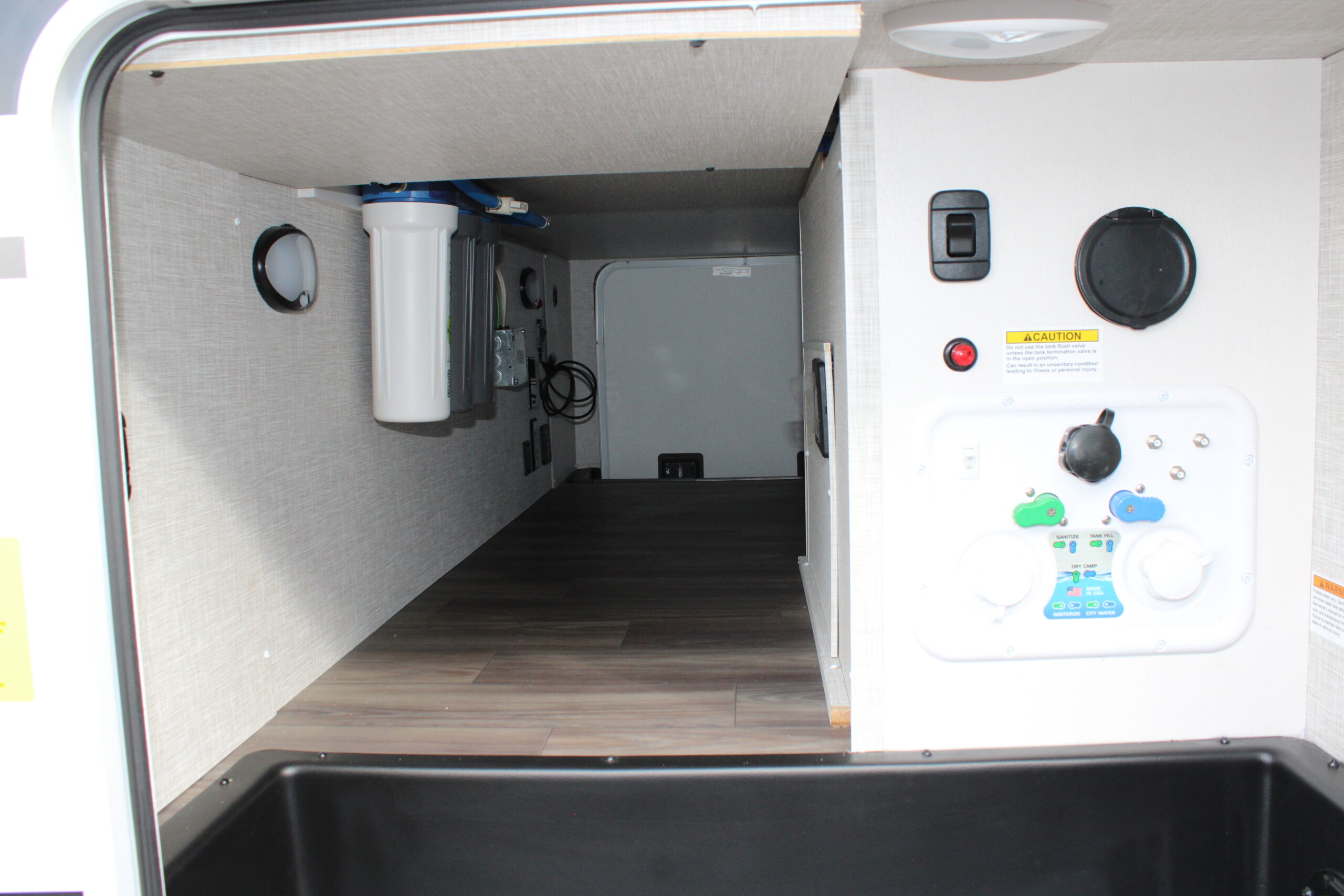

- LED lighting in pass through area
- LP quick connect for gas griddle (next to JayPort)

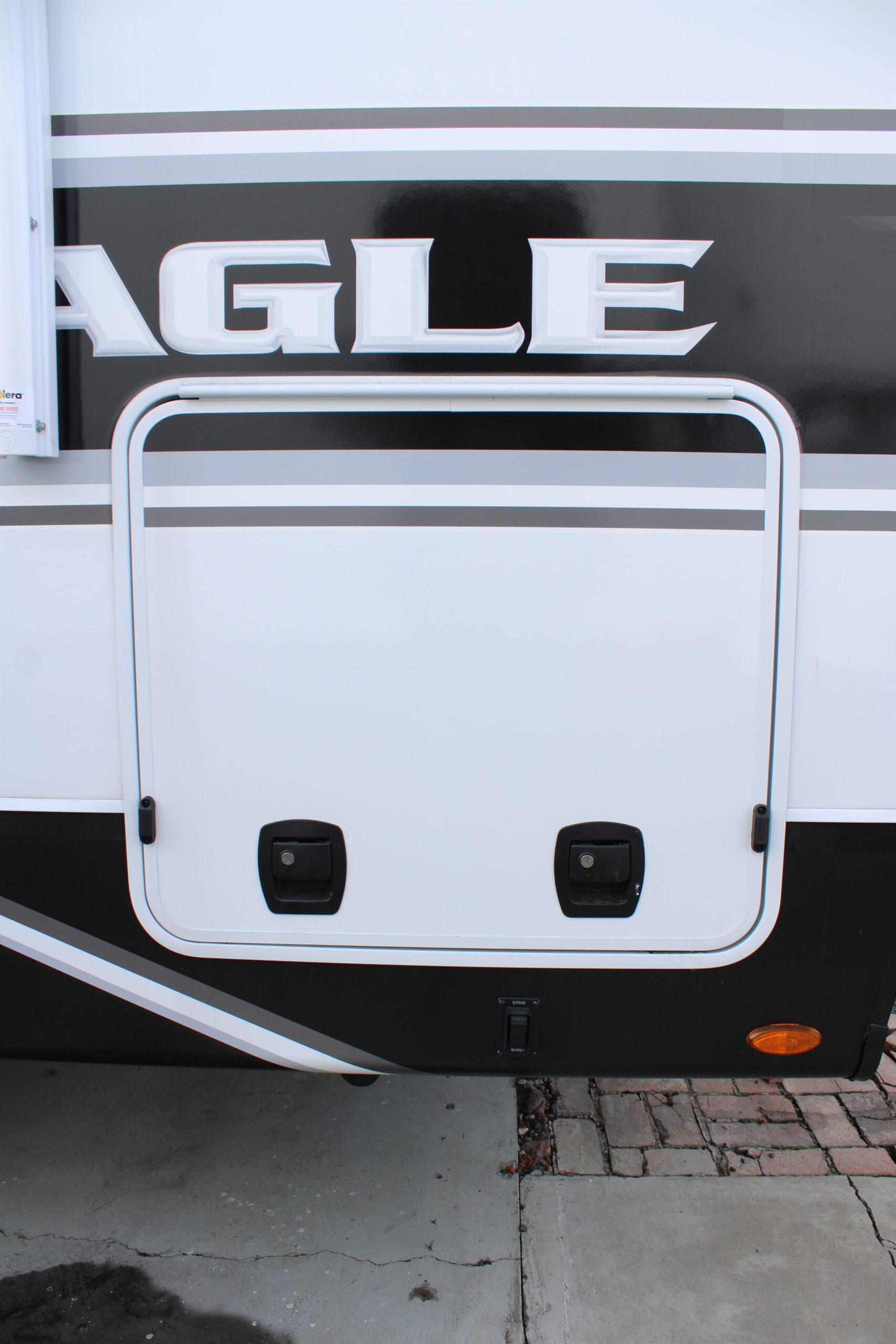

- Metal slam latch baggage doors

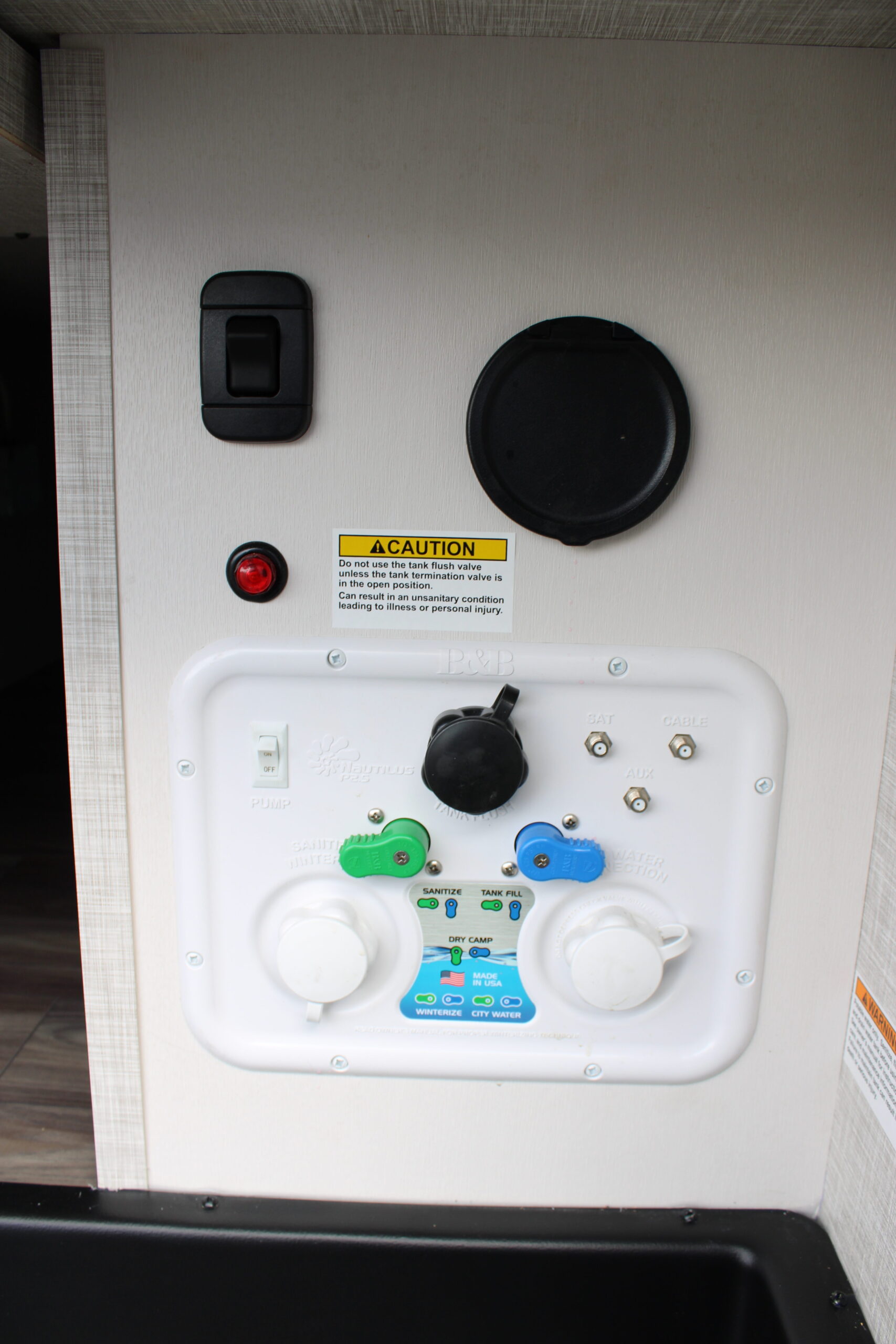

- Nautilus 2.5 water connections
- Nitrogen filled under mount spare tire (model/option varies 15 in. or 16 in.)
- Overlander solar prep (roof)
- Quick connect water connections (door side hot/cold and off door side cold only)
- Slide topper/awning prep
- Stronghold VBL™ walls (laminated sidewalls, rear walls and slide out walls)
Standard Interior Equipment
- 100% No Floor Vents
- 2-piece high gloss bathroom surround
- 5/8 in. tongue-and-groove plywood flooring
- 75 lb. full extension drawer guides
- Bathroom skylight
- Bedroom TV, satellite and cable prep
- CPAP prepped bedroom (both sides)
- Extra 120V power outlets in kitchen and slide rooms (where applicable)
- Gas strutted under bed storage
- Handcrafted and glazed door/drawer fronts
- LED fireplace with 5,000 BTU electric space heater (select models)
- Matte black kitchen faucet with pull-out sprayer

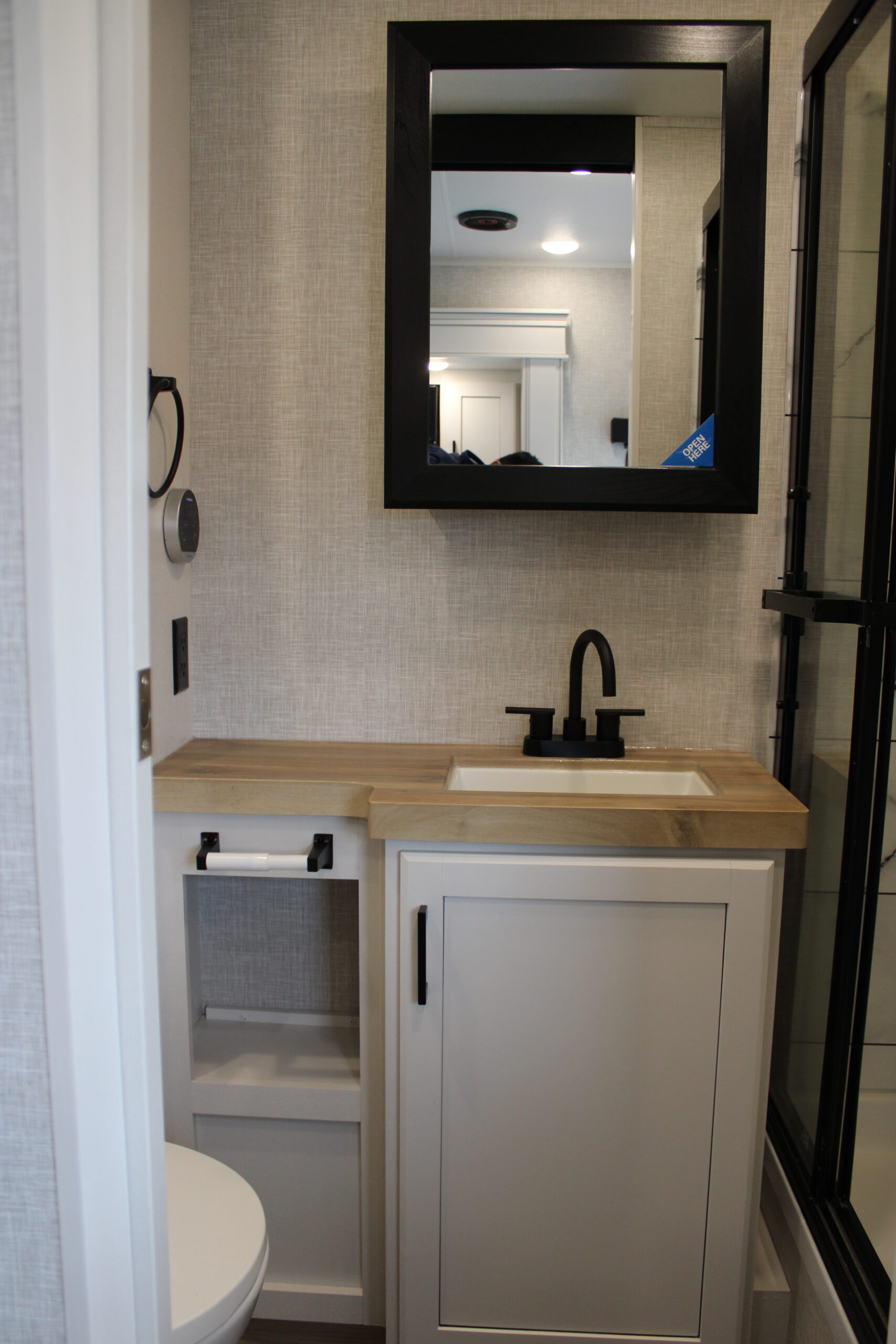

- Medicine cabinet with custom framed mirror

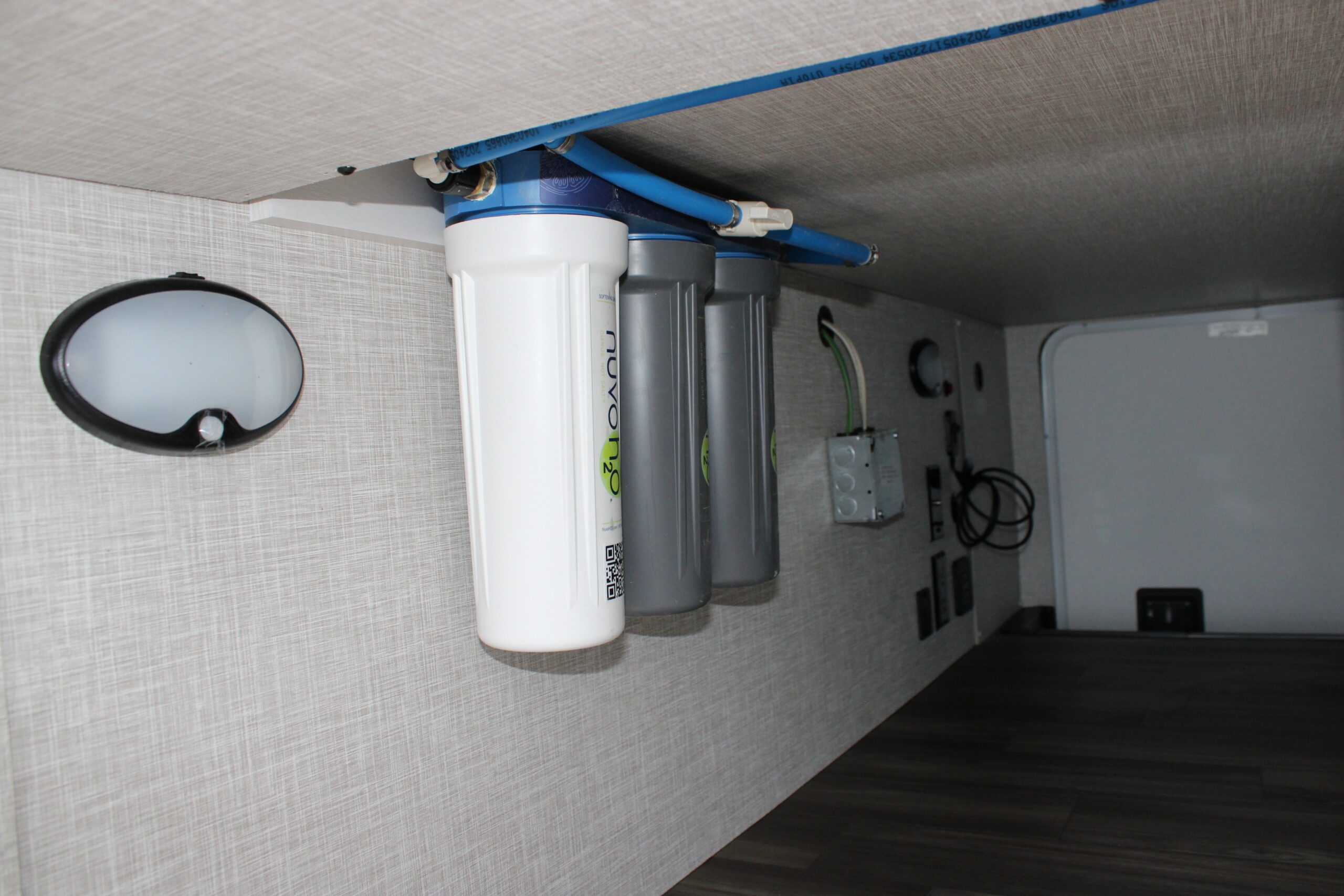

- NuVo H20 Water Treatment System (filters included)
- Porcelain foot flush toilet
- Residential vinyl flooring throughout (NO CARPET)
- Solid hardwood slide fascia
- Teak Seat Shower Prep

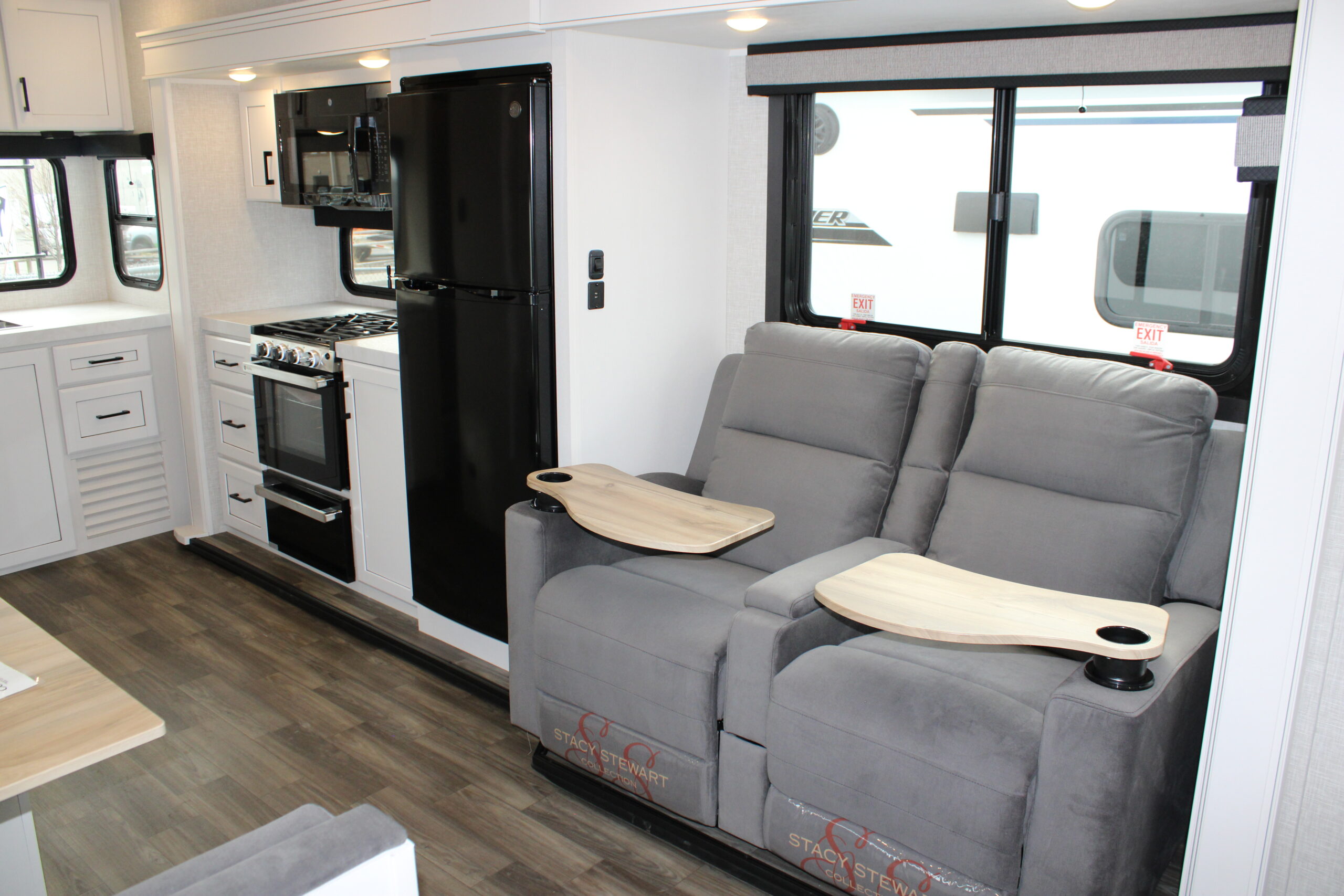

- Theater seating (select models)
- Tri-fold hide-a-bed sofa with residential memory foam sleep surface (select models)
- USB 12V charging ports (multiple locations throughout)
- Water shutoff at all faucet locations
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C and bedroom A/C prep

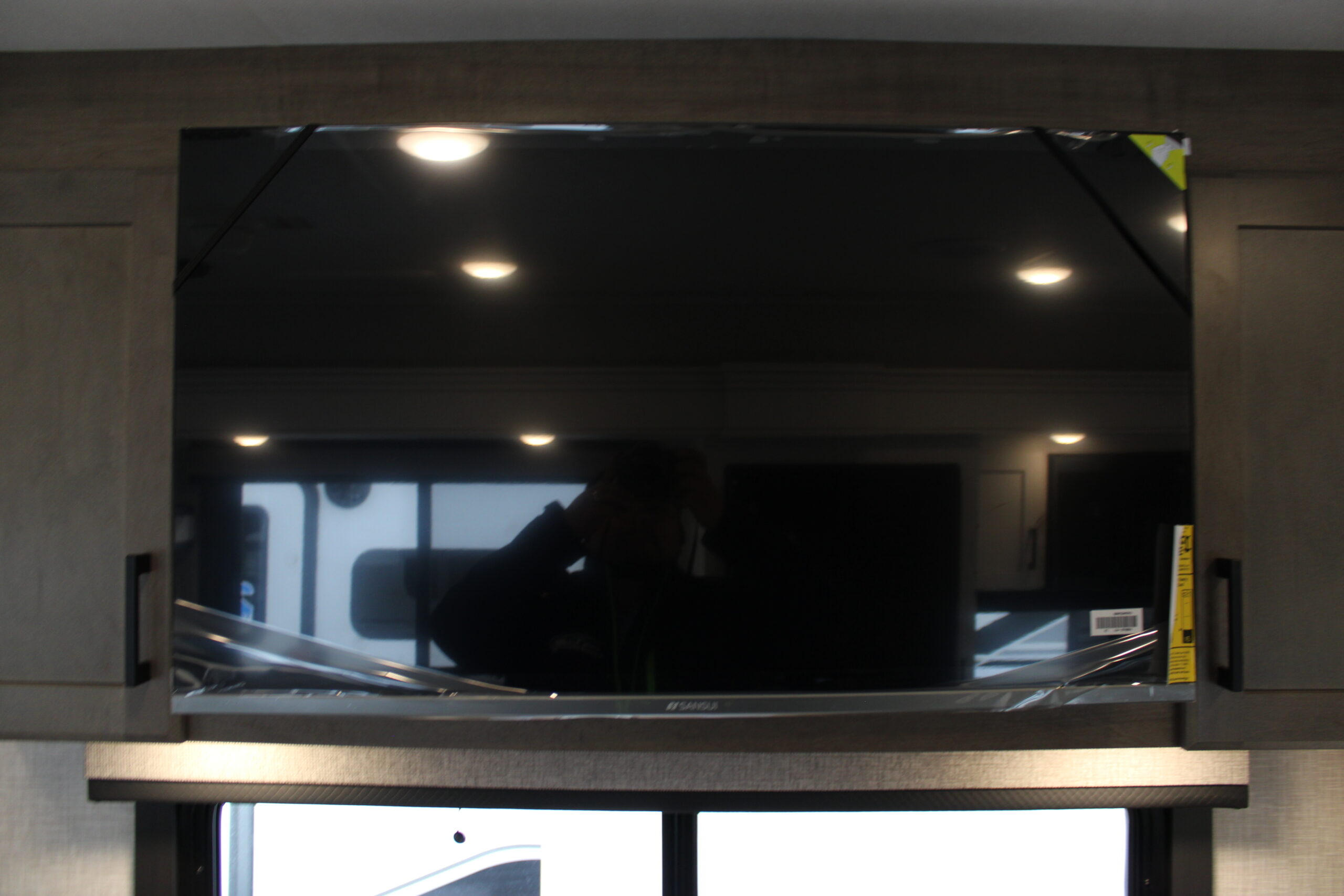

- 40 in. 4K Ultra LED HD Smart TV in living room
- 50-amp service with dual A/C ducts
- 60,000 BTU on-demand tankless water heater
- Custom machined aluminum rims
- Electric patio awning

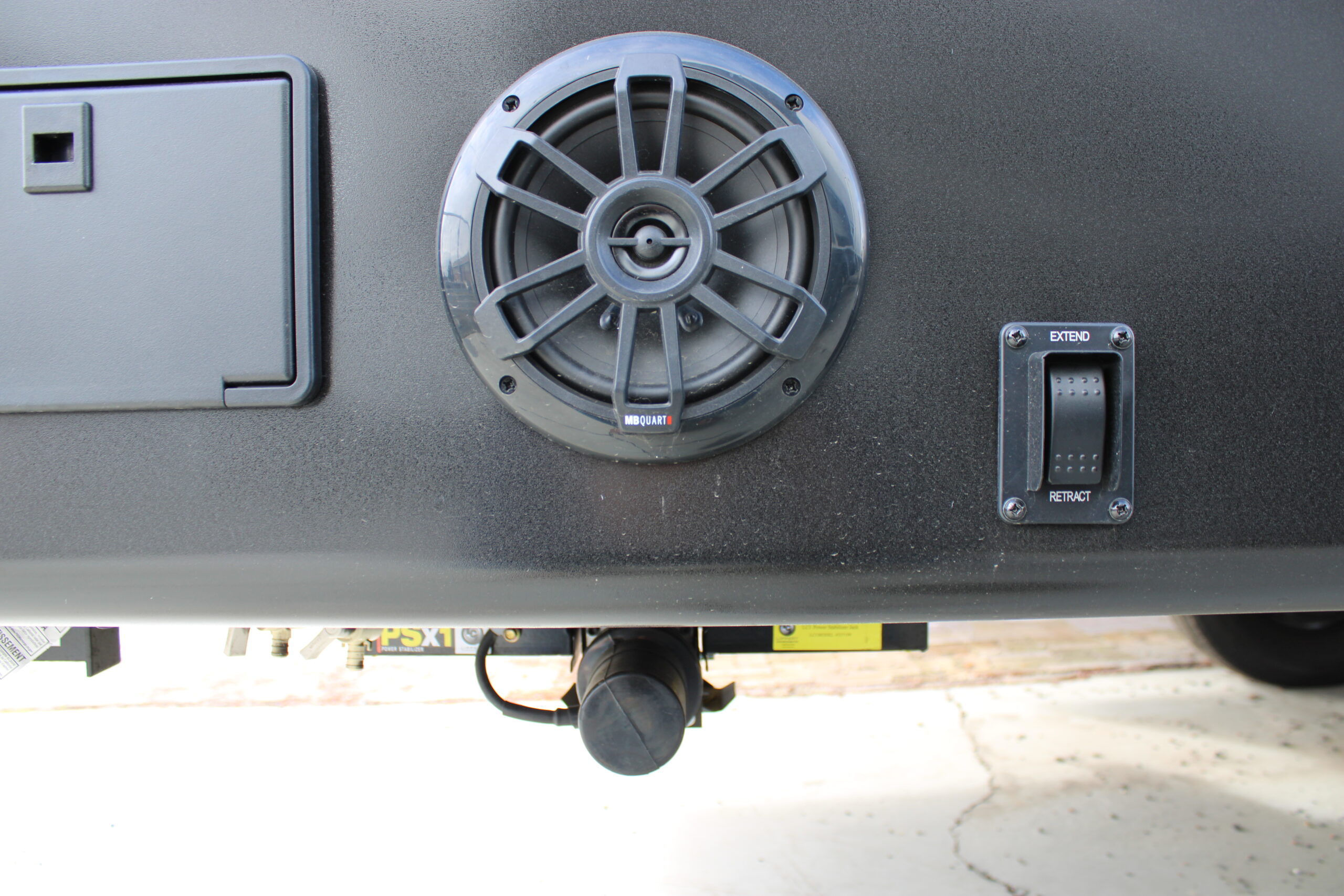

- Exterior “Blue Sync” Audio Connect with MB Quart Sound (TV and phone)
- Hidden hinges on cabinet doors
- Interior “Blue Sync” Audio Connect with MB Quart Sound (TV and phone)
- Keyed-Alike™ lock system
- MORryde Step Above™ entrance steps (main entrance) with blue LED light
- Rain proof bathroom power vent
- Rear 2 in. towing receiver
- Upgraded friction hinge entrance door
- Winegard Air 360 + antenna and router prep (NOW 5G)
Luxury Package (Mandatory)
- Blackout roller shades with reflective side throughout

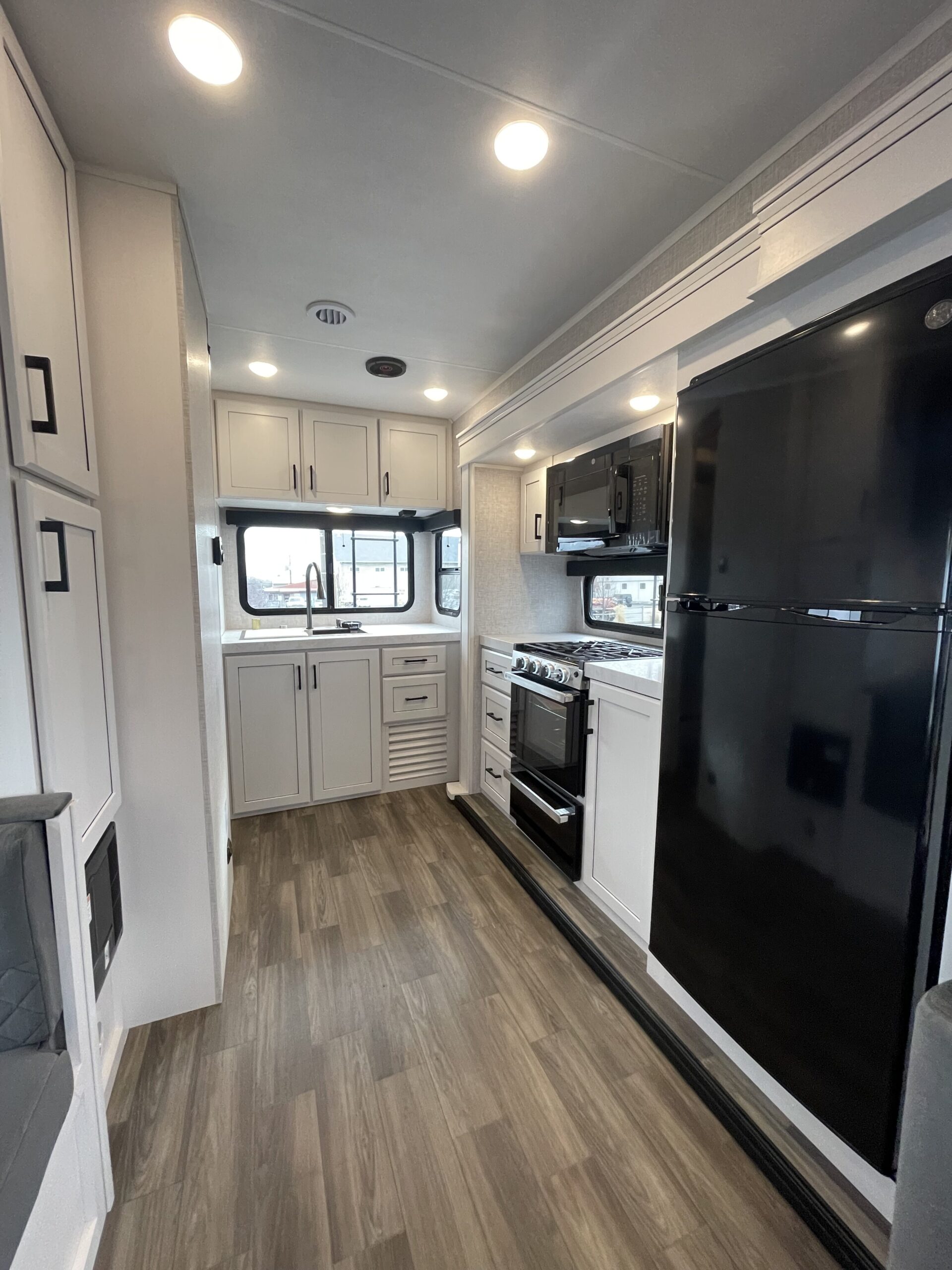

- GE 10 cu. ft. 12V refrigerator

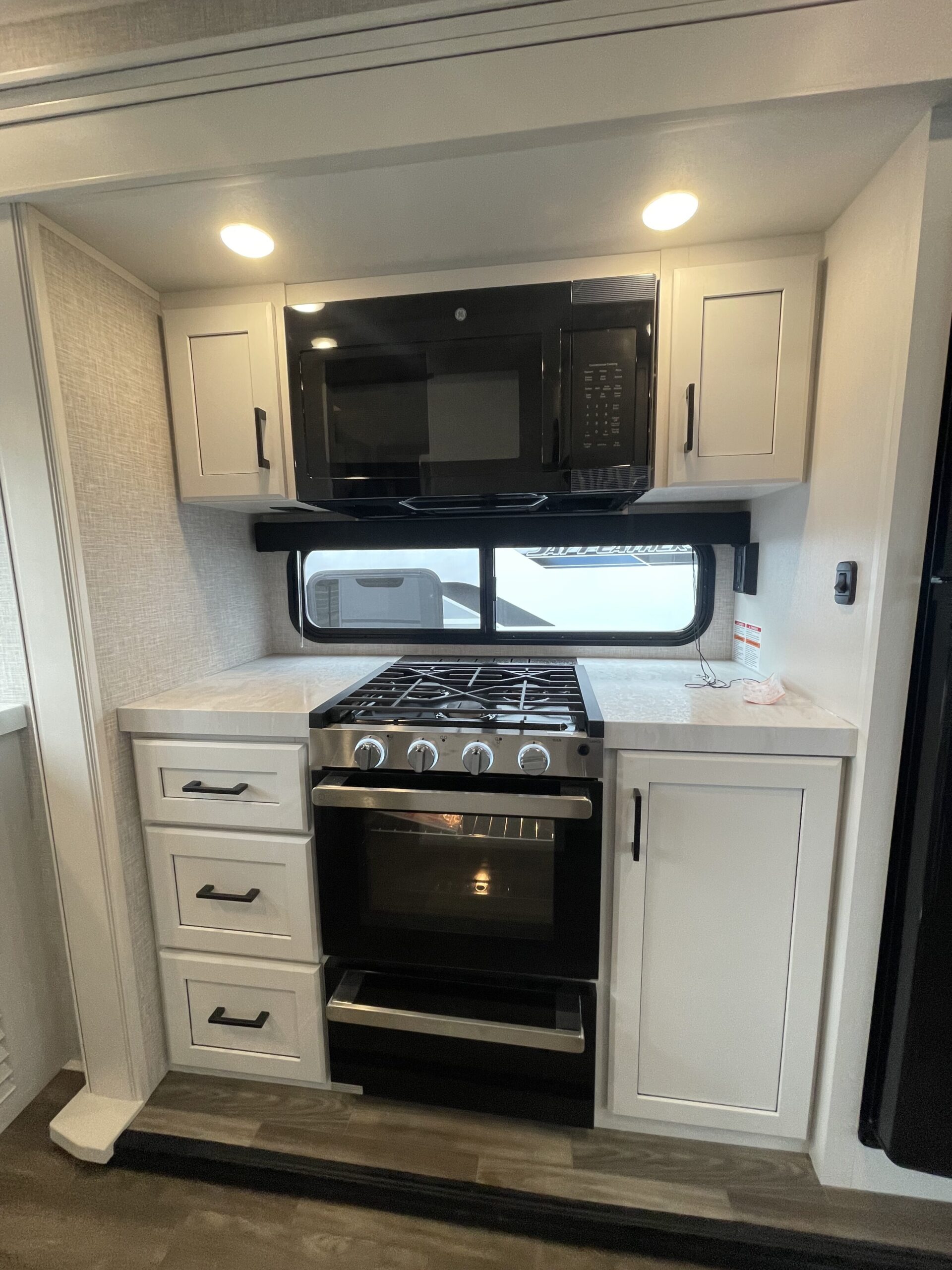

- GE 30 in. over-the-range black and stainless microwave with exhaust fan
- GE black and stainless 21 in. range with edge to edge grates
- Inverter pre-wire (multiple locations) ((7) 110 outlets) (6 USBs 12V)
- JayPort 2 in. mount (for outside accessories)
- Magnetic Catches for all drawers and doors
- Multi-Function “ALL in ONE” Stainless steel kitchen sink
- Residential 66 in. x 80 in. OLYMPIC size mattress

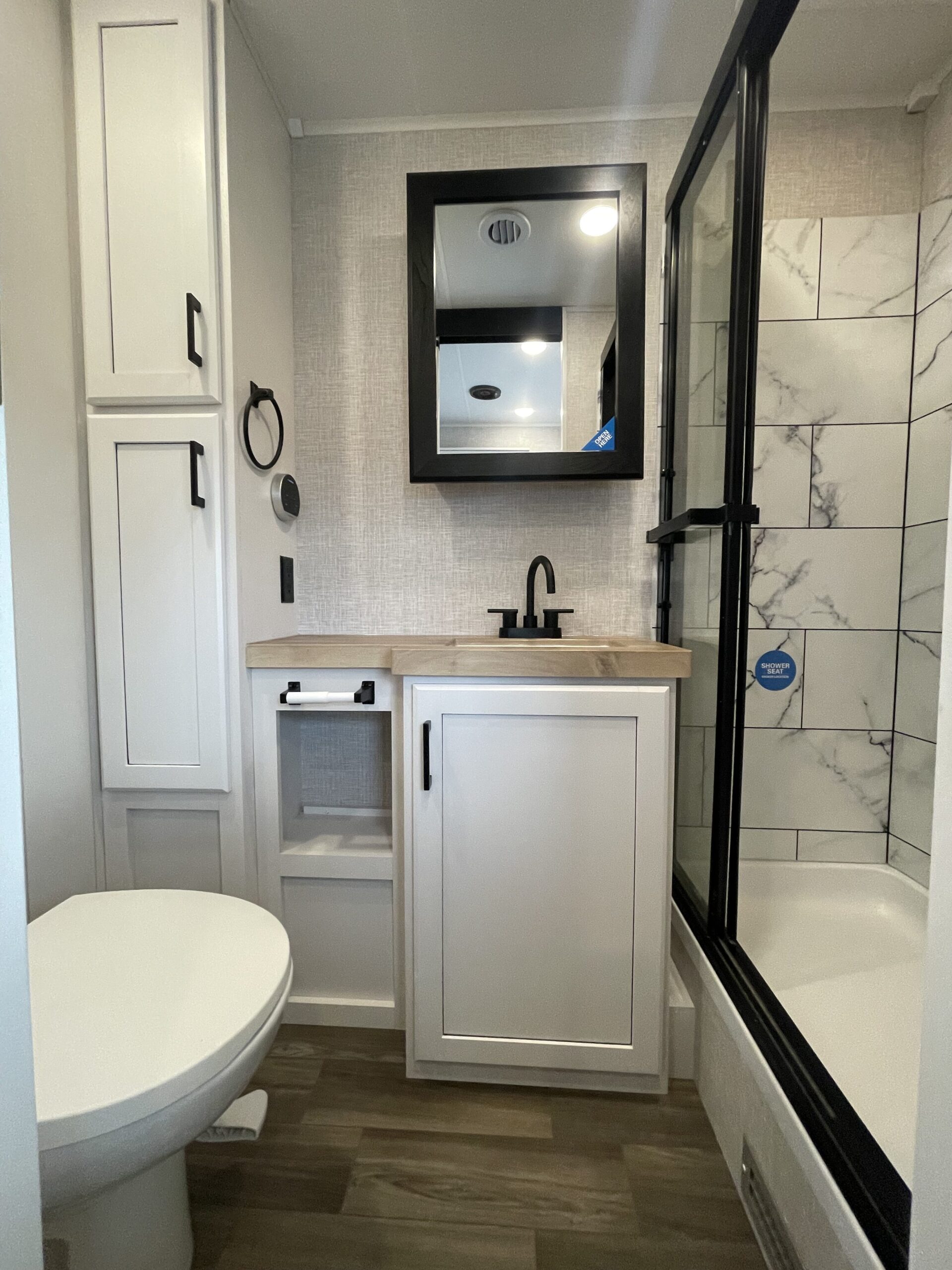

- Residential style glass shower door
- Washer/dryer prep (select models)
4 Star Handling Package (Mandatory)
- Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
- Goodyear® Endurance® tires (load range E)
- MORryde® CRE-3000™ rubberized suspension
- Wet bolt fasteners with bronze bushings
Options
- 15,000 BTU bedroom A/C
- Booth dinette (select models)
- Dexter® ABS brake system with anti-sway
- Electric auto-leveling with JAYCOMMAND® Smart RV system
- Extreme Weather Package with 120 heat pads and 12V heat tape on fresh water line
- Frameless dual pane windows
- Free standing table with leaf and bench seat and 2 foldable dinette chairs
- Furniture cup holder tables (1 pair)
- HALO 22 in. outside griddle with deep sink attachment for JayPort system (select models)
- JAYCOMMAND® Smart RV System with TPMS monitoring
- King bed (72 in. x 80 in.) mattress with under-bed storage
- LED fireplace with 5,000 BTU electric space heater (select models)
- Overlander 1 Solar Package (200W panel and 30-amp solar controller)
- Overlander 2 Solar Package: (2) 200W panels, MPPT 30-amp solar controller and 1800W inverter)
- Residential 72 in. x 80 in. king size mattress (select models)
- Theater seating in place of tri-fold sofa (select models)
- Triple reclining sofa ipo dinette (select models)
Specifications
Weights
| Dry Hitch Weight (lbs) |
795 |
| Unloaded Vehicle Weight (lbs) |
6,575 |
| Cargo Carrying Capacity (lbs) |
1,825 |
| Gross Vehicle Weight Rating (lbs) |
8,400 |
Measurements
| Exterior Length (overall) |
27′ 8″ |
| Exterior Length (pin to bumper) |
24′ 7″ |
| Exterior Height |
11′ 0″ |
| Exterior Height (with A/C) |
11′ 9″ |
| Exterior Width |
8′ 1″ |
| Exterior Width (with slides out) |
10′ 1″ |
| Interior Height (main) |
7′ 0″ |
| Awning Length |
19′ 0″ |
Tank Capacities
| Fresh Water Capacity (gals) |
52.0 |
| Gray Water Capacity (gals) |
37.0 |
| Black Tank Capacity (gals) |
74.0 |
| Propane Unit (lbs) |
60 |
Miscellaneous
| Sleeps |
up to 3 |
| Water Heater |
Tankless |
| # of outside storage compartments |
2 |
| Furnace BTU |
35000 |
